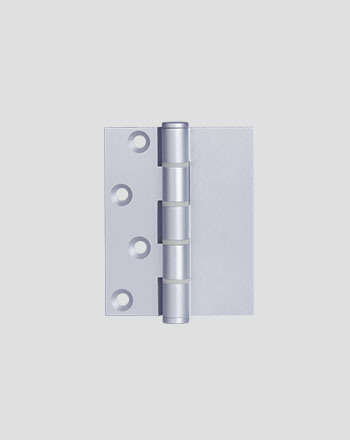

A143SNA – Aluminium Combination Butt Hinge

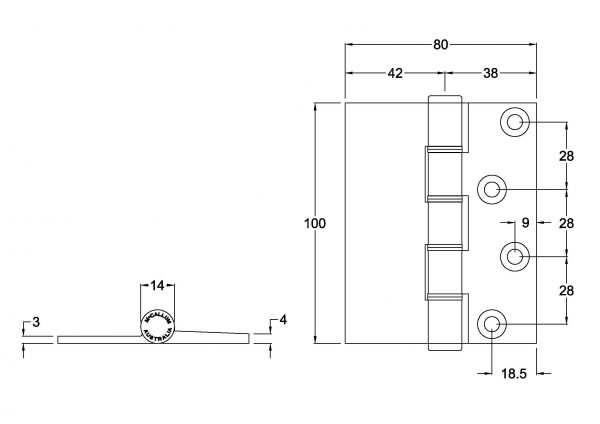

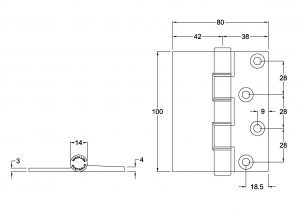

- Aluminium Combination Butt Hinge 100x80x3mm
- Fixed Pin
- Suitable for Timber doors in Aluminium frames and partitions
- Door weight up to 20kg
- Additional information
Additional information
Additional information
| Hinge Type | |
|---|---|
| Dimension | |
| Knuckle | |
| Material | High Strength Aluminium Alloy T6 min tensile 254 mpa |
| Hinge Pin | 4.7mm Stainless Steel 304 Grade |
| Bearings | Flanged Nylon Bushes |
| End Cap | Aluminium interference fit |
| Face Fix | |
| Handing | |
| Frame Type | |
| Door Type | |
| Minimum Door Thickness | |
| Maximum Door Weight | |
| Fixing Screws Supplied | |
| Fire Rated | |
| Finish | |
| Warranty Period |
